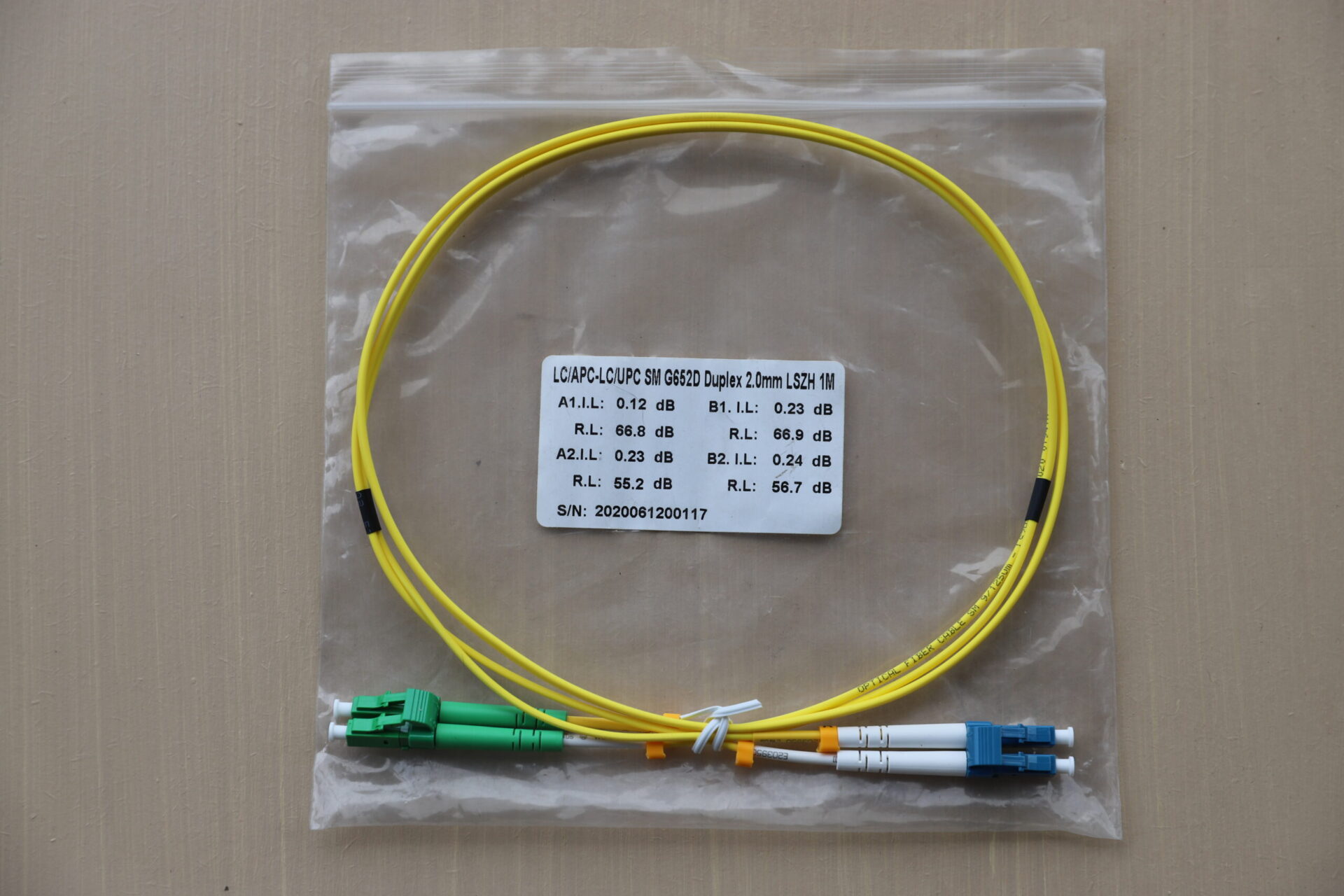

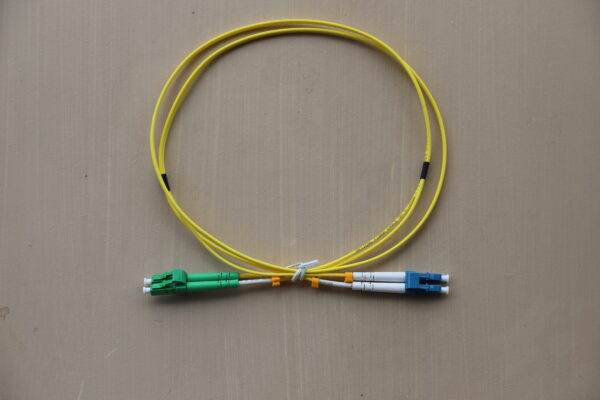

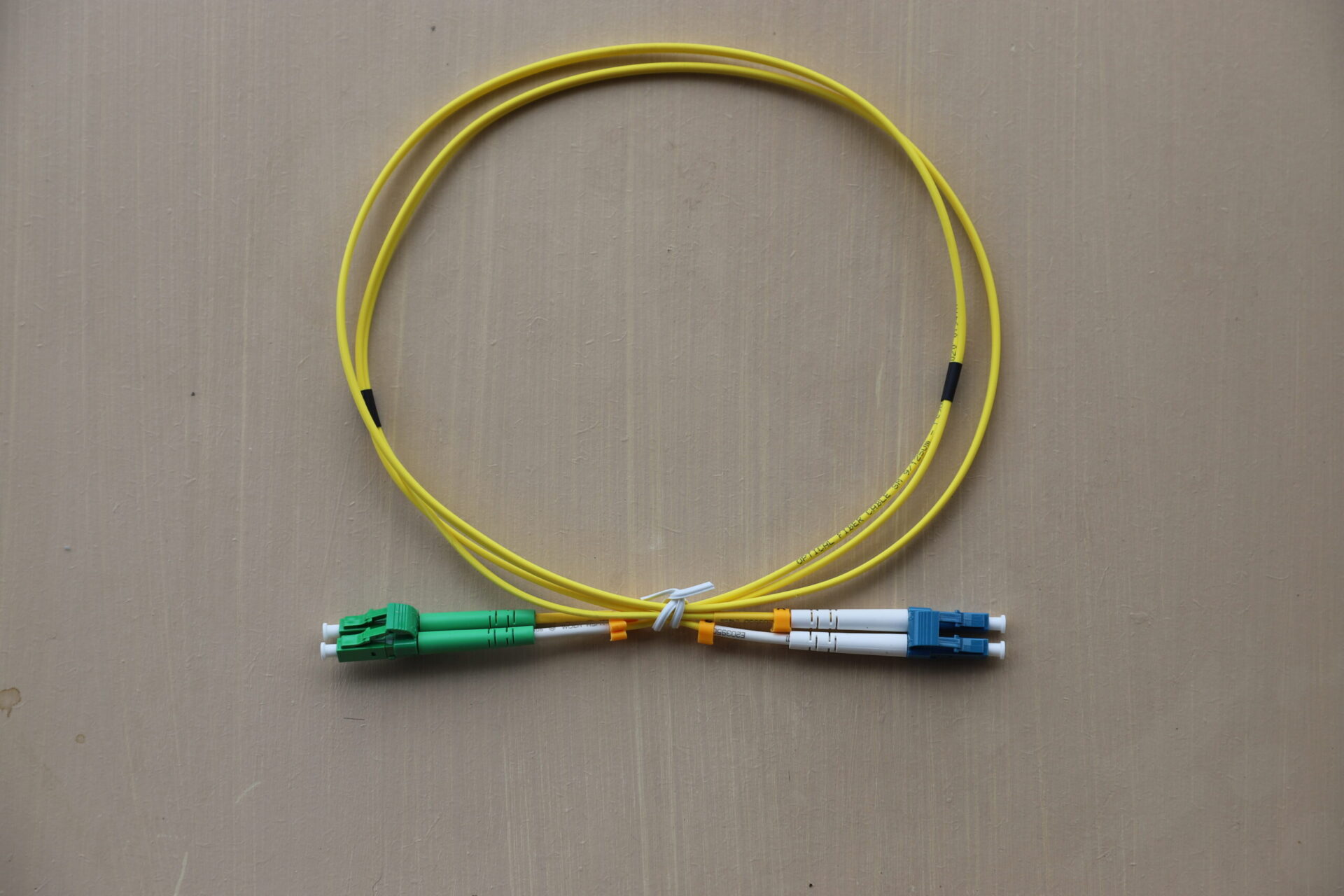

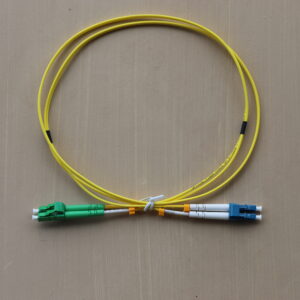

1M LC/APC to LC/UPC Duplex SM Patch Lead for Hybrid Fibre Connections
The 1 Metre LC/APC to LC/UPC Duplex Single Mode Patch Lead is a high-precision fibre optic solution engineered for bridging systems with different connector polish types. Whether you’re integrating new equipment with legacy systems or optimising signal integrity in diverse networks, this patch lead ensures low insertion loss and minimal back reflection—ideal for high-performance structured cabling.
Hybrid Polish for Cross-Compatible Connections
This LC/APC to LC/UPC duplex patch lead is perfect for environments where different connector types are required. The LC/APC connector features an 8° angled polish, reducing back reflection, while the LC/UPC connector has an ultra-physical contact flat polish. This configuration allows seamless integration between systems using different polish specifications without compromising signal performance.
Key Features
- Connector Type: LC/APC to LC/UPC
- Fibre Type: Single Mode G657A / G652D
- Configuration: Duplex (Two Fibre Cores)
- Length: 1 Metre
- Insertion Loss: ≤0.20dB
- Return Loss: ≥60dB
- Jacket Options: LSZH (Low Smoke Zero Halogen) or PVC
- 1000+ Mating Cycles
- RoHS and IEC compliant
Ideal Applications
- Telecommunication systems and exchanges
- FTTH (Fibre to the Home) installations
- Data centres and network cabinets
- Optical Distribution Frames (ODFs)
- Equipment interoperability with mixed polish types
Safe and Efficient Installation
Available in LSZH or PVC jacket materials, this patch lead is flame-retardant and safe for use in enclosed, high-density installations. LSZH variants help prevent toxic smoke release, ensuring compliance with building safety codes in public and enterprise environments. The 1 metre length is ideal for clean and compact rack patching.
Performance & Reliability You Can Trust
Every cable is tested for industry-standard insertion loss ≤0.20dB and return loss up to 60dB, guaranteeing top-tier performance for single-mode data transmission. This hybrid patchcord is built for over 1000 mating cycles and offers dependable signal delivery for critical networking infrastructure.
Related Product
Looking for a standard duplex variant? View our 1M LC/APC Duplex SM Patch Lead for all-LC/APC connectivity.
Frequently Asked Questions
Can LC/APC and LC/UPC connectors be used together?
Yes, but only when using a patch lead specifically designed for this interface, like this hybrid LC/APC to LC/UPC cable. It ensures optimal polish alignment and minimal reflection.
What is the benefit of a duplex cable in this configuration?
Duplex cables support two-way communication—ideal for send and receive paths in fibre networks while reducing clutter and simplifying installation.
Is this patch lead suitable for FTTH?
Yes, this 1M hybrid patch lead is widely used in FTTH deployments to connect ONTs, patch panels, and central offices with mixed LC polish types.
