2M SC/APC to FC/PC Duplex SM Patch Lead

2M SC/APC to FC/PC Duplex SM Patch Lead

R58,00

2M SC/APC to FC/PC duplex patch lead with low insertion loss and LSZH jacket—ideal for FTTH, test labs, and hybrid telecom networks.

Availability: 88 in stock

Guaranteed Safe Checkout

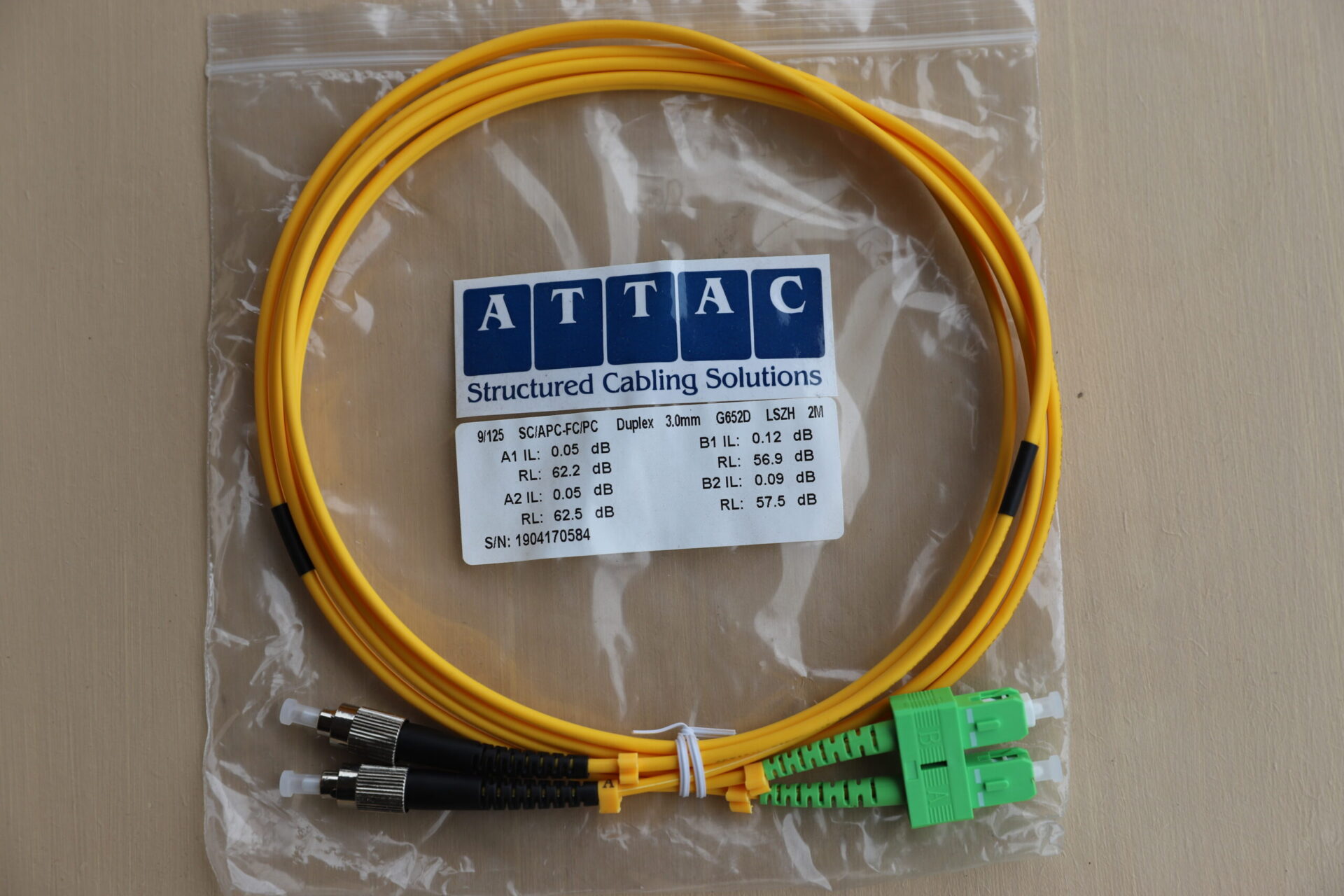

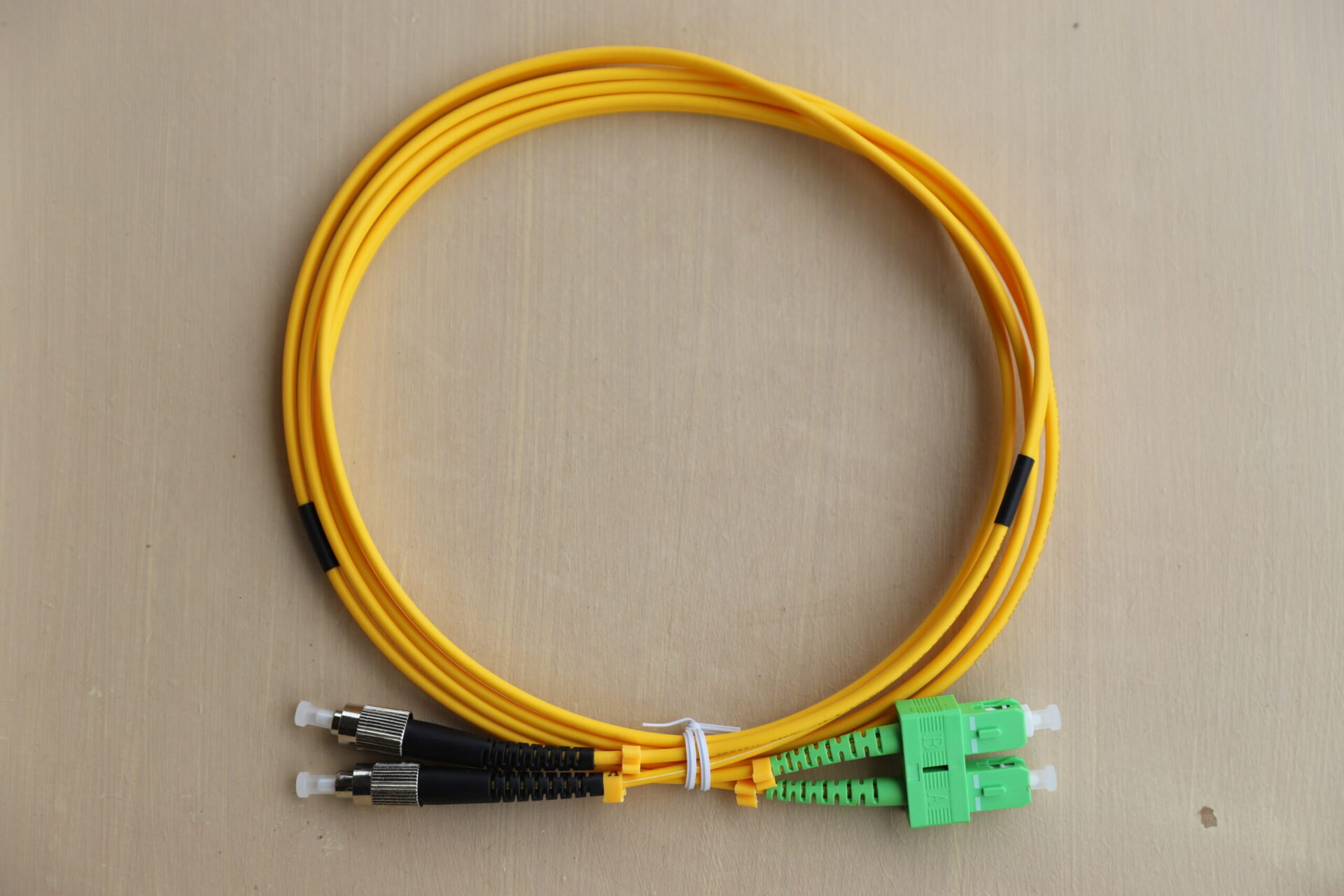

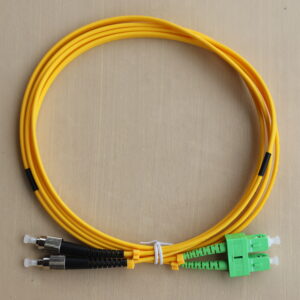

2M SC/APC to FC/PC Duplex SM Patch Lead – Cross-Connector Fibre with High Signal Integrity

The 2 Metre SC/APC to FC/PC Duplex Single-Mode Patch Lead from Attac is designed for mission-critical fibre optic networks requiring high precision and connector-type compatibility. Featuring an angled SC/APC connector on one end and a flat-polished FC/PC connector on the other, this patch lead ensures low insertion loss, high return loss, and minimal back reflection, making it ideal for hybrid interface setups.

Key Performance Highlights

  • Connector Types: SC/APC (angled) to FC/PC (flat)
  • Configuration: Duplex for bi-directional communication
  • Fibre Type: 9/125µm G657A or G652D Single-Mode Fibre
  • Length: 2 Metres
  • Insertion Loss: ≤0.20dB
  • Return Loss: ≥60dB (SC/APC)
  • Durability: >1000 Mating Cycles
  • Jacket Options: LSZH (Low Smoke Zero Halogen) or PVC
  • Compliant with IEC international fibre optic standards

Where to Use This Patch Lead

  • FTTH (Fibre To The Home) infrastructure
  • Telecom and PON systems
  • Hybrid equipment racks with SC and FC connectors
  • Laboratory test instruments using FC/PC ports
  • Data centre cabinets requiring angled and secure connections

Connector Advantages

SC/APC connectors are angled to reduce back reflection and are commonly used in high-precision RF and video transmissions. FC/PC connectors use a threaded mechanism that ensures a secure and vibration-resistant connection—especially useful in test equipment and critical systems.

By combining both interfaces in a single duplex format, this patch lead bridges two platforms with optimal transmission performance, reducing the need for extra adapters or patch panels.

Jacket Safety and Build

The cable is available in both LSZH and PVC jacket options. LSZH is ideal for enclosed, public, or environmentally controlled spaces where smoke and halogen emissions must be minimised. PVC is more cost-effective and flexible, suitable for general indoor runs.

Related Product

Need the simplex version? See the 2M SC/APC to FC/PC Simplex SM Patch Lead for single-fibre configurations.

Frequently Asked Questions

Can I use this patch lead with FTTH and lab equipment?

Yes. The SC/APC to FC/PC configuration is ideal for bridging FTTH infrastructure and laboratory instruments that use FC ports.

What is the benefit of SC/APC over SC/UPC?

SC/APC connectors provide better return loss performance due to their angled polish, making them ideal for RF and video transmission with minimal signal reflection.

Is FC/PC the same as FC/UPC?

FC/PC is a general term that may refer to FC connectors with physical contact polish. FC/UPC is a subset of PC connectors with ultra-polish, offering better performance. If your equipment specifies FC/PC, this cable will be compatible.

KP2SCAFCDX Spec Sheet

Weight 0,044 kg
Dimensions 21 × 22 × 2,5 cm
