PLC Splitter 1:4 Connectorised LC/APC

Sale!

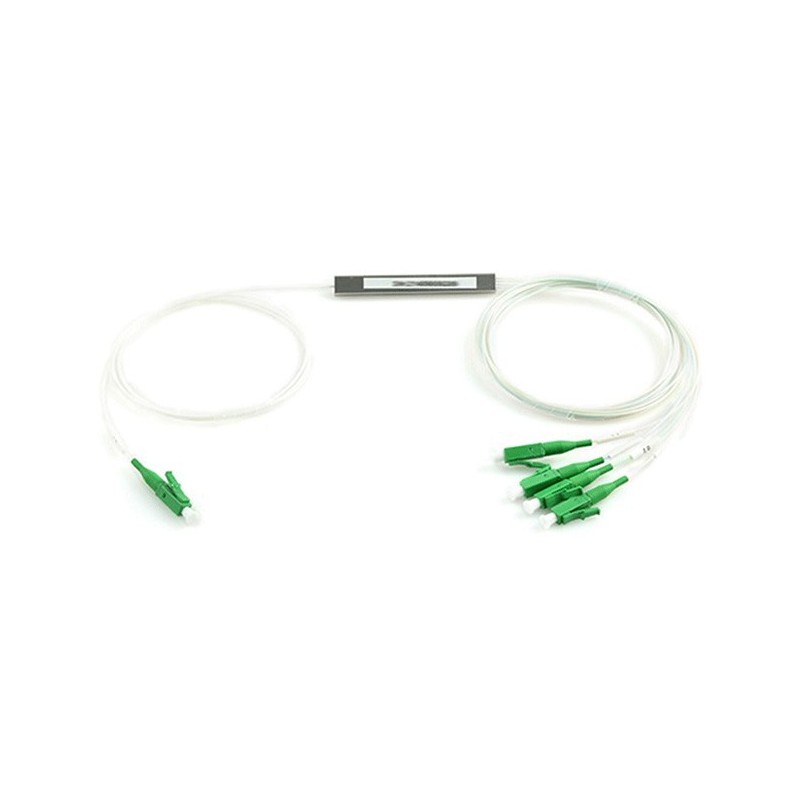

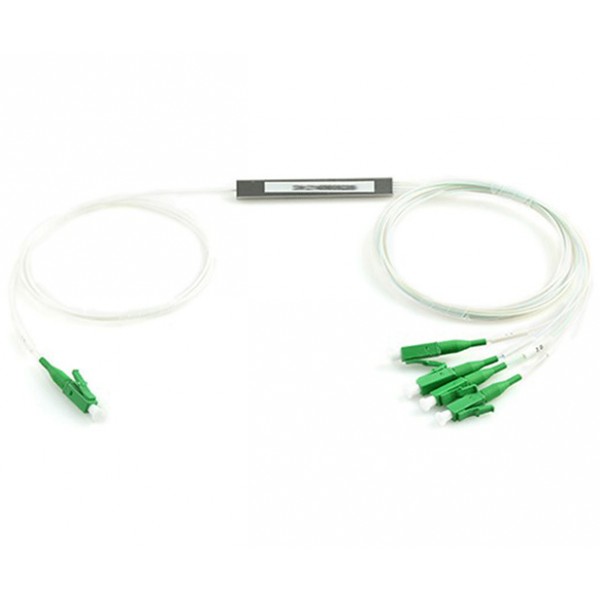

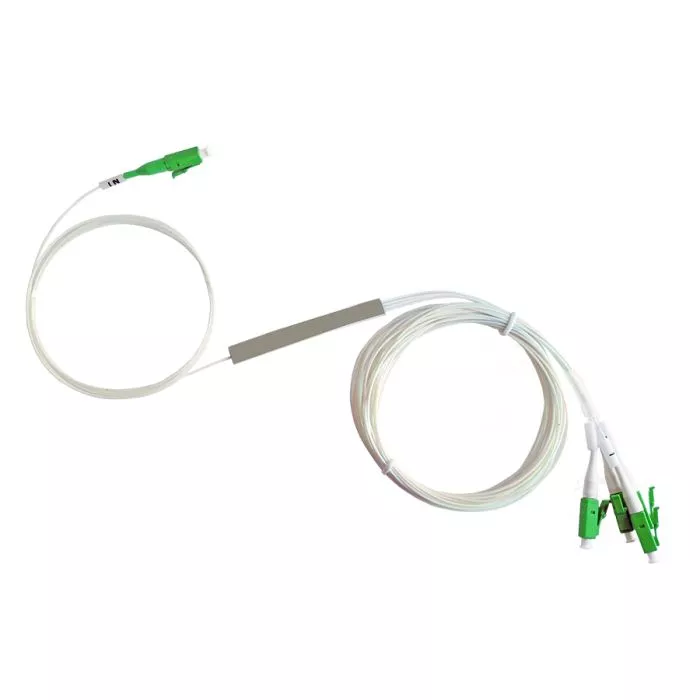

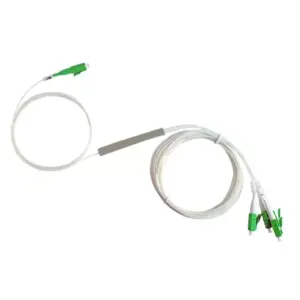

PLC Splitter 1:4 Connectorised LC/APC

1:4 PLC splitter with LC/APC connectors. Pre-terminated, low-loss, and angled polished for stable signal distribution in FTTH and GPON.

Out of Stock – Request Price and Lead Time

Guaranteed Safe Checkout

PLC Splitter 1:4 LC/APC – Low-Loss Fibre Signal Distribution

The PLC Splitter 1:4 LC/APC from Attac is a compact and high-precision solution for evenly distributing optical signals in FTTH, GPON, and FTTx networks. Built using Planar Lightwave Circuit (PLC) technology, this splitter divides one input into four uniform outputs, maintaining low insertion loss and minimal back reflection.

Key Features

  • Split Ratio: 1 input to 4 LC/APC outputs
  • Connector Type: Factory pre-terminated LC/APC (angled polish)
  • Wavelength Range: 1260–1650nm wideband singlemode
  • Low Insertion Loss: Ensures strong, balanced output signals
  • High Return Loss: Angled LC/APC connectors reduce back-reflection
  • Low PDL: Consistent performance regardless of signal polarisation
  • Standards Compliance: IEC and Telcordia GR-1209/1221 certified
  • Installation: Plug-and-play for patch panels, fibre trays, or enclosures

Reliable Optical Performance for Sensitive Fibre Links

This PLC splitter 1:4 LC/APC is engineered for high-sensitivity applications where signal reflection can impact network performance. Ideal for use in access networks, distribution cabinets, and multi-service fibre links, it provides stable optical transmission across a broad spectrum with low attenuation and precise output balance.

Advantages of LC/APC Connectors

The angled end-face of the LC/APC connectors offers a superior return loss of ≥60dB, making this splitter perfect for applications such as live video, voice-over-IP, and fibre sensors. The small LC form factor also enables high-density rack installations in compact environments.

Applications

  • FTTH and FTTx network deployments
  • GPON/EPON split networks
  • Optical Distribution Frames (ODFs)
  • Data centres and telecom base stations
  • Rack-mounted or wall-mounted fibre trays

Technical Specifications

  • Connector: LC/APC
  • Split Ratio: 1:4
  • Fibre Type: Singlemode (G.657A1)
  • Wavelength Range: 1260–1650nm
  • Typical Insertion Loss: ≤7.5dB
  • Return Loss: ≥60dB
  • PDL: ≤0.2dB
  • Operating Temperature: -40°C to +85°C
  • Compliance: IEC, Telcordia GR-1209/1221

Explore Larger Split Ratios

Need more outputs? Check out our 1:8 LC/APC PLC Splitter for broader signal distribution.

Helpful Resource

Learn about LC/APC vs LC/UPC connectors and their impact on fibre network performance.

Frequently Asked Questions

What makes LC/APC connectors ideal for this splitter?

LC/APC connectors offer low back-reflection and are perfect for high-sensitivity fibre systems like video and GPON.

Is this splitter suitable for outdoor use?

Yes, when installed in a weatherproof housing, it performs reliably in a wide temperature range.

Can I use this splitter in a rack-mounted panel?

Yes, the compact pre-terminated design is ideal for rack-mounted and ODF installations.

Weight 0,045 kg
Dimensions 14,5 × 18,5 × 2 cm
