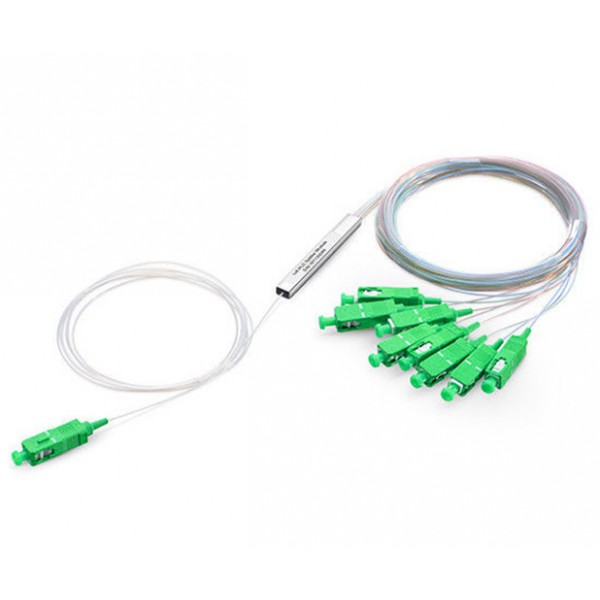

PLC Splitter 1:8 SC/APC – Low-Reflection Fibre Splitter for FTTH
The PLC Splitter 1:8 SC/APC from Attac is a premium-grade passive optical splitter designed to divide a single fibre input into eight SC/APC outputs. Built on Planar Lightwave Circuit (PLC) technology, it delivers low insertion loss, low polarisation-dependent loss (PDL), and high return loss—making it ideal for high-performance GPON, FTTH, and FTTx networks.
Key Features
- Split Ratio: 1 input to 8 SC/APC outputs
- Connectorised: Factory pre-terminated with SC/APC connectors
- Wavelength Range: 1260–1650nm wideband operation
- Low Insertion Loss: Ensures strong signal across all ports
- High Return Loss: SC/APC angled polish minimises reflection
- Low PDL: Stable signal quality under all conditions
- Housing: Compact format for patch panels, wall boxes, and enclosures
- Compliance: IEC and Telcordia GR-1209/1221 certified
Engineered for High-Precision Fibre Networks
This PLC splitter 1:8 SC/APC is ideal for optical access networks requiring tight return loss control and signal stability. It supports plug-and-play installation into ODFs, fibre wall enclosures, and high-density rack trays, accelerating deployment timelines without compromising performance.
Advantages of SC/APC Connectors
SC/APC (Angled Physical Contact) connectors are preferred in networks that demand low back-reflection and high accuracy. The green connector housing and 8° angled polish minimise signal reflection, reducing interference in high-bandwidth systems like IPTV, VoIP, and real-time data streaming.
Applications
- FTTH (Fibre-to-the-Home) and FTTx networks
- GPON/EPON access networks
- Backbone and metro fibre networks
- Rack-mounted ODFs and wall-mounted fibre trays
- Telecom, ISP, and municipal fibre systems
Technical Specifications
- Split Ratio: 1:8
- Connector Type: SC/APC (Angled Physical Contact)
- Fibre Type: Singlemode (G.657A1)
- Wavelength Range: 1260–1650nm
- Typical Insertion Loss: ≤10.5dB
- Return Loss: ≥60dB
- PDL: ≤0.2dB
- Operating Temperature: -40°C to +85°C
- Compliance: IEC, Telcordia GR-1209/1221
Looking for 1:16?
Need more outputs? Browse our 1:16 SC/APC Splitter for broader fibre signal branching.
Helpful Resource
Read this guide on APC vs UPC connectors to understand reflection loss in fibre networks.
Frequently Asked Questions
What makes SC/APC connectors ideal for fibre splitting?
The angled end face ensures high return loss, reducing reflection in sensitive applications like GPON and IPTV.
Can this splitter be used outdoors?
Yes, when housed in a weatherproof enclosure, it performs reliably in outdoor or harsh environments.
Is the splitter compliant with industry standards?
Yes, it meets IEC and Telcordia GR-1209/1221 standards for passive optical components.
